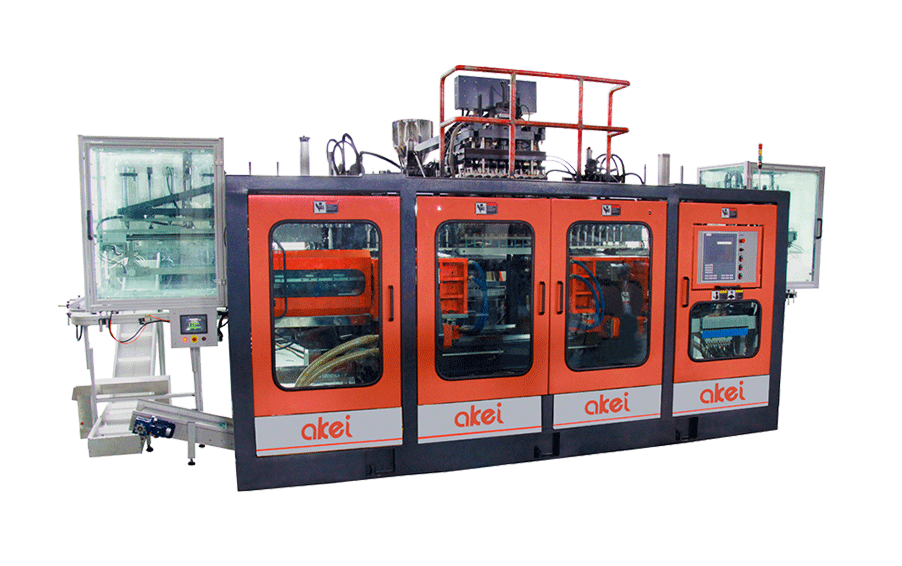

LIN-100-TS
Oriented Discharge
- Robot arms configured according to products' requirements (pneumatic or servo driven). LIN-70A-TS model configured with pneumatic robot arms only.
- Robot arms deliver containers to each side of the machine, ready to place them standing up on a conveyor.
- Pneumatic robot arms actuated by Festo® cylinders and regulated by solenoid directional valves.
- Servo driven robot arms travel on Rexroth® rails and bearings and deliver product between front and rear section of machine. An excellent upgrade if limited floor space is available or when product requires in-mold labeling.
Blowing System
- Blowpin movements are actuated by Vickers® proportional hydraulic valves. (Feature not included on LIN-70A-TS model）
- Stations are equipped with an interchangeable "T" plate, fitted with three-point-adjustable blowpin holder for ease
of centering as well as adjustable for angled neck production and watercooled, double-wall design blowpins for rapid venting. - Norgren® three-stage pneumatic quick exhaust valves.(not available on LIN-70A-TS model).
- Optional air conditioning system with multiple blowing methods, allowing for both blowing and exhaust.
- Optional blowing part air storage tank.
Deflashing
- Deflash movements actuated by proportional hydraulic valves for precise adjustment and re-duced energy consumption. (not available on LIN-70A-TS).
- Post cooling of products'top and tail scraps prior to punch off.
- Post-cooling stations equipped with circulating air and water blowpins (optional).
 |
Standard Specification 标准参数 |
Unit | 单位 |
|---|---|---|---|
| Machine Width/机器宽度 | 7564 | mm | 毫米 |
| Machine Length/机器长度 | 5860 | mm | 毫米 |
| Machine Height/机器高度 | 3063 | mm | 毫米 |
| Clamping Stroke/锁模行程 | 280 | mm | 毫米 |
| Clamping Force/锁模力 | 24.6 | ton | 吨 |
| Carriage Stroke/移模行程 | 700 | mm | 毫米 |
| Dry Cycle/干循环时间 | 3.6 | second | 秒 |
| Wall Thickness Control/厚薄控制 | 100 | point | 点 |
| Hydraulic Motor/液压驱动马达 | — | kW | 千瓦 |
| Water Consumption/冷却水用量 | 18 - 20 | m³/h | 立方米/小时 |
| Air Pressure/气压 | — | bar | 巴 |
| Air Consumption/压缩空气用量 | 1.5 - 2 | m³/min | 立方米/分钟 |
| Machine Net weight/机器净重 | 29 | ton | 吨 |
| Machine Gross Weight/机器毛重 | 31 | ton | 吨 |
parameter maybe subject to change/数值仅供参考
