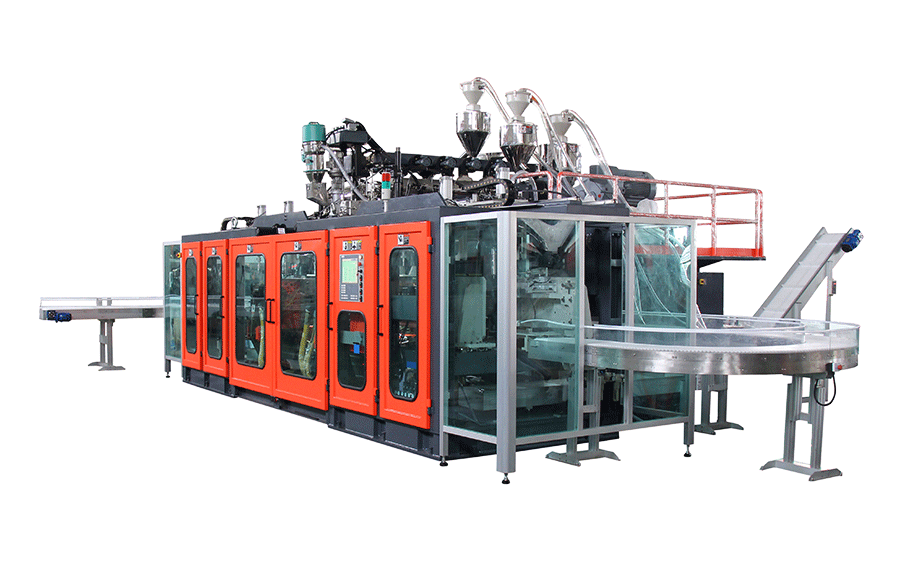

This machine is built to meet the requirements of industrial containers production in a fully automatic fashion. Clamp force, platen opening and carriage transfer stroke are designed to produce stackable or standard or standard jerry cans ranging from 10L to 25L in volume.

Oriented Discharge

  • Robot arms configured according to products' requirements (pneumatic or servo driven). LIN-70A-TS model configured with pneumatic robot arms only.
  • Robot arms deliver containers to each side of the machine, ready to place them standing up on a conveyor.
  • Pneumatic robot arms actuated by Festo® cylinders and regulated by solenoid directional valves.
  • Servo driven robot arms travel on Rexroth® rails and bearings and deliver product between front and rear section of machine. An excellent upgrade if limited floor space is available or when product requires in-mold labeling.

Blowing System

  • Blowpin movements are actuated by Vickers® proportional hydraulic valves. (Feature not included on LIN-70A-TS model）
  • Stations are equipped with an interchangeable "T" plate, fitted with three-point-adjustable blowpin holder for ease
    of centering as well as adjustable for angled neck production and watercooled, double-wall design blowpins for rapid venting.
  • Norgren® three-stage pneumatic quick exhaust valves.(not available on LIN-70A-TS model).
  • Optional air conditioning system with multiple blowing methods, allowing for both blowing and exhaust.
  • Optional blowing part air storage tank.

Deflashing

  • Deflash movements actuated by proportional hydraulic valves for precise adjustment and re-duced energy consumption. (not available on LIN-70A-TS).
  • Post cooling of products'top and tail scraps prior to punch off.
  • Post-cooling stations equipped with circulating air and water blowpins (optional).
​ Standard Specification
标准参数		 Unit 单位
Machine Width/机器宽度 6818  mm 毫米
Machine Length/机器长度 8106 mm 毫米
Machine Height/机器高度 3750 mm 毫米
Clamping Stroke/锁模行程 480 mm 毫米
Clamping Force/锁模力 50 ton 吨
Carriage Stroke/移模行程 900  mm 毫米
Dry Cycle/干循环时间 —  second 秒
Wall Thickness Control厚薄控制 100 point 点
Hydraulic Motor/液压驱动马达 — kW 千瓦
Water Consumption/冷却水用量 18 - 20 m³/h 立方米/小时
Air Pressure/气压 — bar 巴
Air Consumption/压缩空气用量 3.5 - 4.5 m³/min 立方米/分钟
Machine Net weight/机器净重 — ton 吨
Machine Gross Weight/机器毛重 — ton 吨
parameter maybe subject to change/数值仅供参考
