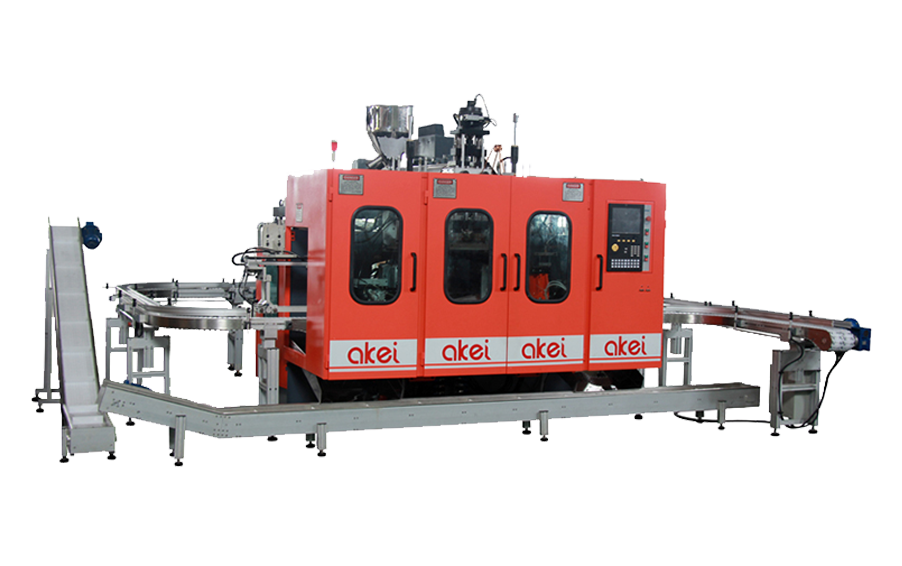

AO-50SN-TS

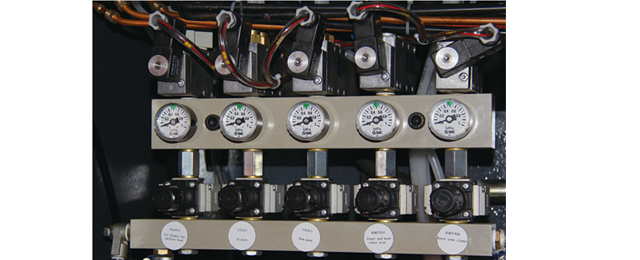

Equipped standard with a 50mm extruder unit for the automatic production of standard pro-ducts and a maximum capacity of 2 liters in single-head configuration. This model is ideal for products ranging from 450ml to 2L in the cosmetic or body care industry. Different options are available in order to customize ma-chine according to customer's production requirements.Pneumatic Components
- Independent SMC®gauges for flow adjustment of parison support air and parison decompression.
- Festo® pneumatic controls.
- SMC® cylinders.
- Directional valve regulates blowing and exhaust sequences.

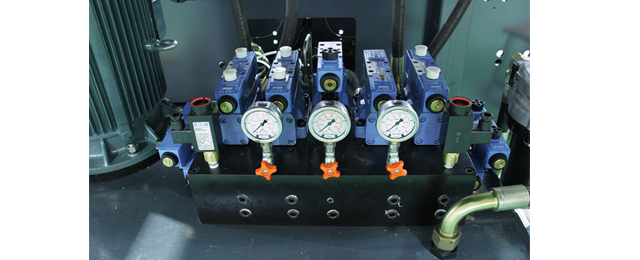

Hydraulic Components
- Vickers® decelerator valves, directional valves and main system vane pump.
- KAMUI FS® water-cooled heat exchanger in order to maintain hy-draulic oil at optimal working temperatures.
- Hydraulic oil pre-heat feature and automatic temperature control available upon request.
- Independent hydraulic power pack unit for 100+ point parison control cylinder (upgrade required/non-standard feature).

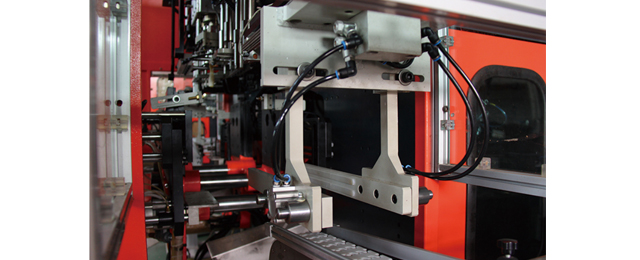

Oriented Discharge
- Pneumatic robot arms.
- Robot arms deliver containers to each side of the machine, ready to place them standing up on a conveyor.
- Pneumatic robot arms actuated by Festo® or SMC® cylinders and regulated by solenoid directional valves.
 |
Standard Specification 标准参数 |
Unit | 单位 |
|---|---|---|---|
| Machine Width/机器宽度 | 2979 | mm | 毫米 |
| Machine Length/机器长度 | 2790 | mm | 毫米 |
| Machine Height/机器高度 | 2500 | mm | 毫米 |
| Clamping Stroke/锁模行程 | 254 | mm | 毫米 |
| Clamping Force/锁模力 | 8 | ton | 吨 |
| Carriage Stroke/移模行程 | — | mm | 毫米 |
| Dry Cycle/干循环时间 | — | second | 秒 |
| Wall Thickness Control/厚薄控制 | 100 | point | 点 |
| Hydraulic Motor/液压驱动马达 | 11 | kW | 千瓦 |
| Water Consumption/冷却水用量 | 10 - 12 | m³/h | 立方米/小时 |
| Air Pressure/气压 | — | bar | 巴 |
| Air Consumption/压缩空气用量 | 1.5 - 2 | m³/min | 立方米/分钟 |
| Machine Net weight/机器净重 | — | ton | 吨 |
| Machine Gross Weight/机器毛重 | 7 | ton | 吨 |
parameter maybe subject to change/数值仅供参考
