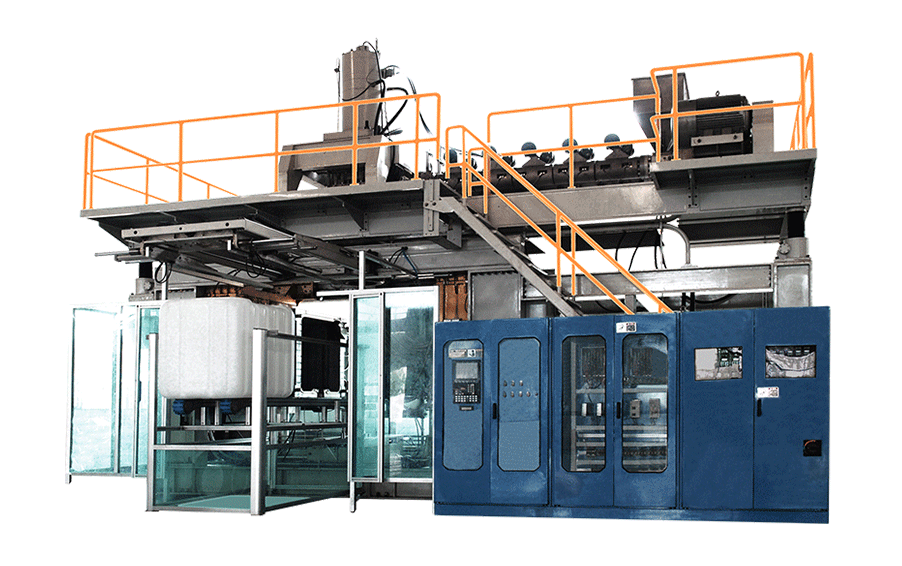

AK-120IIHA
Presently，It is the biggest EBM machine manufactured by AKEI. This model was developed specifically to produce Intermediate Bulk Containers (IBC) of up 1000L in volume. With the ability to plunge 41kg in a single shot, an impressive clamp force of 200 tons (160bar) and a mold platen st under 2胡uara meters, this model is also able to produce heavy duty pallets for trans-porting and storing industrial goods at 4 tons dynamic load and 5 tons static load respectively.Clamps&Carriages

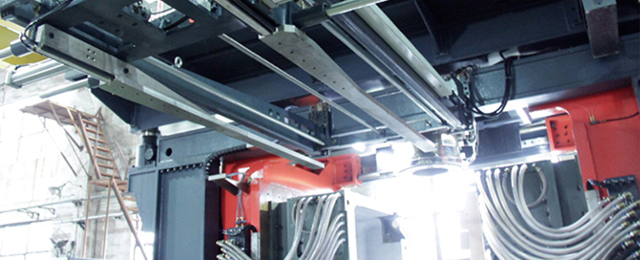

- Carriage travels on Rexroth® T-rail and slide bearings.
- Equipped with clamp synchronizing rack mechanism to ensure smooth runs on mold opening/closing sequences.
- Mold opening and closing sequences are sale-guarded by a non-contact transducer and switch in order to ensure accuracy of each motion.
Oriented Discharge
- Pneumatic robot arm to place final product on a small con-veyor in front of machine.
- Pneumatic robot arms actuated by Festo. or SMC® cylin-ders and regulated by solenoid directional valves.

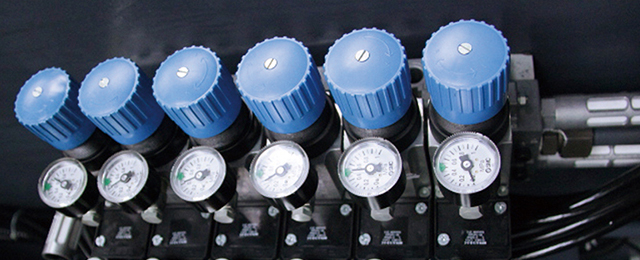

Pneumatic Components
- FESTO® pneumatic controls
- SMC® quick exhaust valve.
- FESTO® or SMC® cylinders. (Feature not included on AK-90HA model).
Data being updated.Stay tuned!
