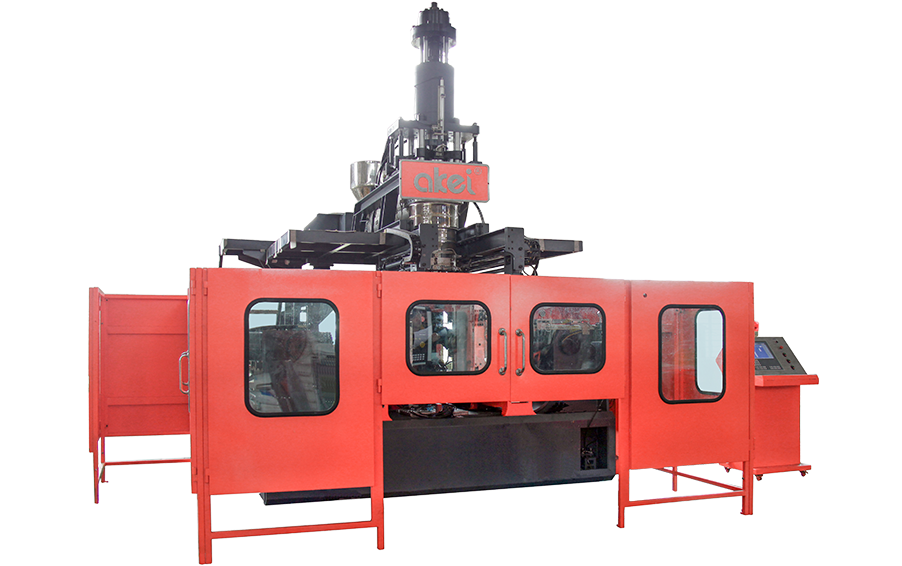

AK-90HA
Equipped with a 90mm extruder screw, this model suitable for producing up to 120L barrels used for storing different kinds of chemical，industrial or agro-chemical products. With a mold platen of just less than 1 square meter, It is also recommended for the production of bus or stadium seats, medium size collection bins and many other kinds of products.Clamps&Carriages
- Carriage travels on Rexroth® T-rail and slide bearings.
- Equipped with clamp synchronizing rack mechanism to ensure smooth runs on mold opening/closing sequences.
- Mold opening and closing sequences are sale-guarded by a non-contact transducer and switch in order to ensure accuracy of each motion.
Oriented Discharge
- Pneumatic robot arm to place final product on a small con-veyor in front of machine.
- Pneumatic robot arms actuated by Festo. or SMC® cylin-ders and regulated by solenoid directional valves.
Pneumatic Components
- FESTO® pneumatic controls
- SMC® quick exhaust valve.
- FESTO® or SMC® cylinders. (Feature not included on AK-90HA model).
 |
Standard Specification 标准参数 |
Unit | 单位 |
|---|---|---|---|
| Machine Width/机器宽度 | 7285.5 | mm | 毫米 |
| Machine Length/机器长度 | 4531 | mm | 毫米 |
| Machine Height/机器高度 | 4360 | mm | 毫米 |
| Clamping Stroke/锁模行程 | 1000 | mm | 毫米 |
| Clamping Force/锁模力 | 40 | ton | 吨 |
| Carriage Stroke/移模行程 | — | mm | 毫米 |
| Dry Cycle/干循环时间 | — | second | 秒 |
| Wall Thickness Control/厚薄控制 | 100 | point | 点 |
| Hydraulic Motor/液压驱动马达 | — | kW | 千瓦 |
| Water Consumption/冷却水用量 | 16 - 18 | m³/h | 立方米/小时 |
| Air Pressure/气压 | — | bar | 巴 |
| Air Consumption/压缩空气用量 | 2 - 3 | m³/min | 立方米/分钟 |
| Machine Net weight/机器净重 | 16.5 | ton | 吨 |
| Machine Gross Weight/机器毛重 | 19 | ton | 吨 |
parameter maybe subject to change/数值仅供参考
