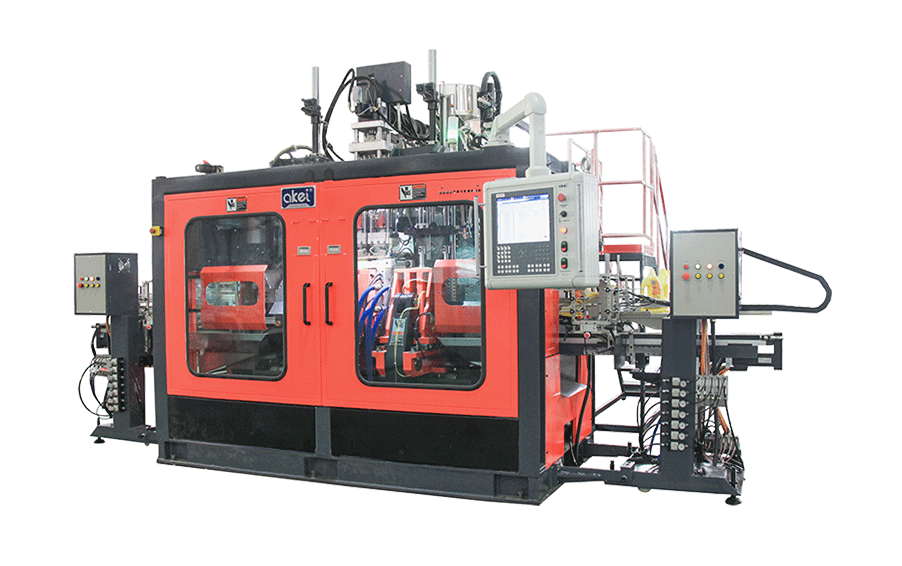

With a fast dry cycle, this compact model features a rigid frame and a linear moving carriage and clamping stroke on Rexroth guide rails. It is widely used in the lubricant, dairy and traditional household product industry for containers ranging from 4 to 5 liter in single head, 1 to 2 liter in double head, 500 to 1000 milliliter in triple head, 200 to 500 milliliter in quad head, and 100 to 200 milliliter in six-way head configuration.

Oriented Discharge

  • Robot arms configured according to products' requirements (pneumatic or servo driven). LIN-70A-TS model configured with pneumatic robot arms only.
  • Robot arms deliver containers to each side of the machine, ready to place them standing up on a conveyor.
  • Pneumatic robot arms actuated by Festo® cylinders and regulated by solenoid directional valves.
  • Servo driven robot arms travel on Rexroth® rails and bearings and deliver product between front and rear section of machine. An excellent upgrade if limited floor space is available or when product requires in-mold labeling.

Blowing System

  • Blowpin movements are actuated by Vickers® proportional hydraulic valves. (Feature not included on LIN-70A-TS model）
  • Stations are equipped with an interchangeable "T" plate, fitted with three-point-adjustable blowpin holder for ease
    of centering as well as adjustable for angled neck production and watercooled, double-wall design blowpins for rapid venting.
  • Norgren® three-stage pneumatic quick exhaust valves.(not available on LIN-70A-TS model).
  • Optional air conditioning system with multiple blowing methods, allowing for both blowing and exhaust.
  • Optional blowing part air storage tank.

Deflashing

  • Deflash movements actuated by proportional hydraulic valves for precise adjustment and re-duced energy consumption. (not available on LIN-70A-TS).
  • Post cooling of products'top and tail scraps prior to punch off.
  • Post-cooling stations equipped with circulating air and water blowpins (optional).
​ Standard Specification
标准参数		 Unit 单位
Machine Width/机器宽度 4868 mm 毫米
Machine Length/机器长度 4392 mm 毫米
Machine Height/机器高度 2576  mm 毫米
Clamping Stroke/锁模行程 240  mm 毫米
Clamping Force/锁模力 16.5 ton 吨
Carriage Stroke/移模行程 480 mm 毫米
Dry Cycle/干循环时间 3.2  second 秒
Wall Thickness Control/厚薄控制 100 point 点
Hydraulic Motor/液压驱动马达 — kW 千瓦
Water Consumption/冷却水用量 4 - 6 m³/h 立方米/小时
Air Pressure/气压 — bar 巴
Air Consumption/压缩空气用量 1.5 - 2 m³/min 立方米/分钟
Machine Net weight/机器净重 13 ton 吨
Machine Gross Weight/机器毛重 15 ton 吨

parameter maybe subject to change/数值仅供参考
